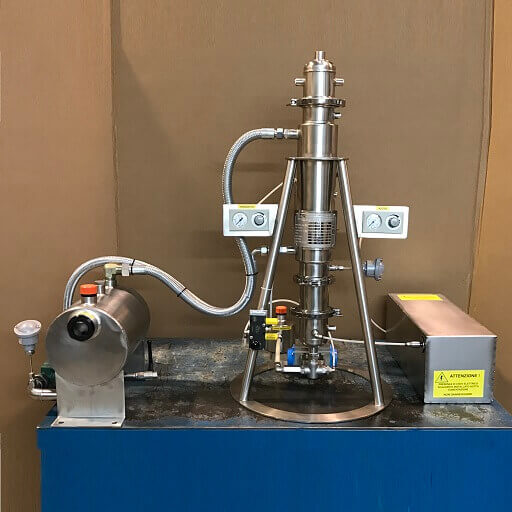

Pilot plants, for laboratory scale synthesis of polymers, or built for other type of chemical processes, in accordance to our customer specific requests.
No limit in volume, that can start from 1 liter reactors or even lower, and no limit in pressure design, that can be up to 100 bar and more.

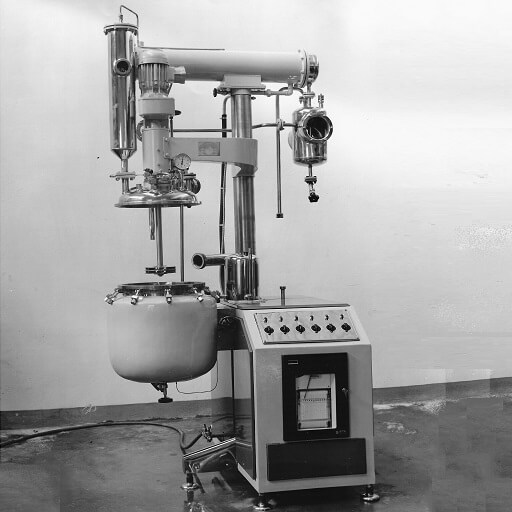

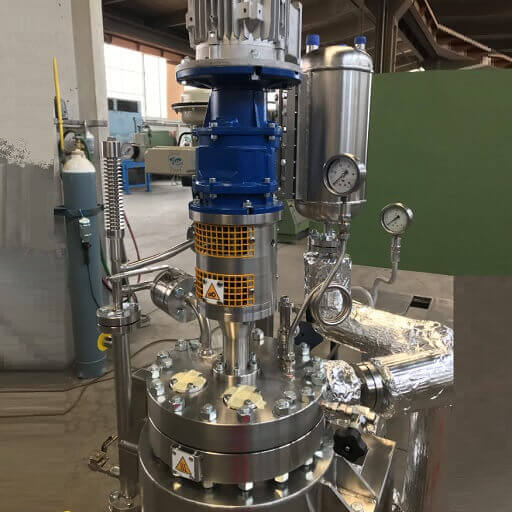

Our standard, universal pilot plant is generally composed as follows, and is built with a capacity of 25 or of 70 useful liters (geometric volume of reactor is 40 or 100 liters):
Reactor
Rectification column
Short way to the condenser
Condenser
Phase separator
Collector tanks
Thinning tank
Thermoregulation group
PC / PLC SCADA system
Design conditions:
Temperature: -20 / +350 °C (or as rquested, design temperature can vary depending on chemistry involved)
Volume: from 1 liter up to 1 m3 (for polymers standard is 20 or 70 liters)
Pressure: full vacuum / +6 barg (or as requested, construction according to PED)
Construction materials: Stainless steel AISI 316, AISI 304
or other corrosion resistan alloys, upon requests
Thermoregulation groups composed of heat exchangers, (operating with diathermic oil, steam or cooling water)
double circulation pumps, interception and control valves.
PC / PLC SCADA systems, electronic or pneumatic instrumentation for a turn-key plant.
Upon demand, our projects are varied according to the specific customers needs.
Synthesis of the most common types of polymers, obtained with polycondensation or polyaddition polymerization procesesses. Here below the main ones, where
B.I.I.C. Bianchi has already supplied several plants to customers all over the world:
Polyesters resins (saturated and unsaturated)
Alkyds
Acrylics
Vynilic
Phenol - formaldehyde (phenolic resins)
PVA
Polyurethanes
Epoxy resins
SEE OUR FULL REFERENCE LIST
